Technical Information
| 250 | 400 | 600 | 1000 | |
| Input | 250A 3ph | 400A 3ph | 600A 3ph | 1000A 3ph |
| Output | 250A 3ph | 400A 3ph | 600A 3ph | 1000A 3ph |
| Dimensions | H 1680 x W 940 x D 500mm | H 1720 x W 1000 x D 550mm | H 1780 x W 1200 x D 580mm | H1950 x W1375 x D 650mm |
| Weight | 165kg | 209kg | 285kg | 420kg |

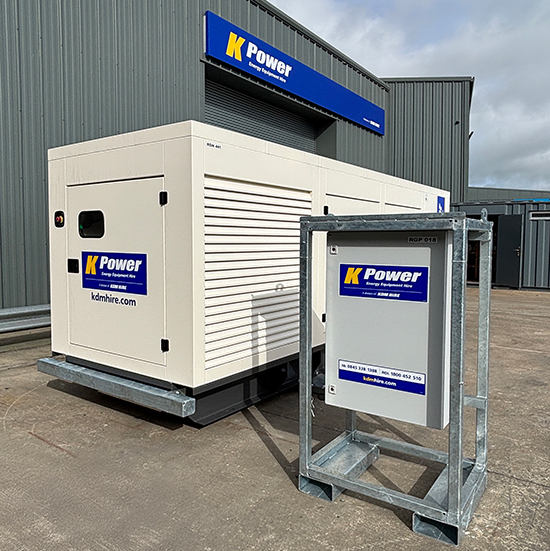

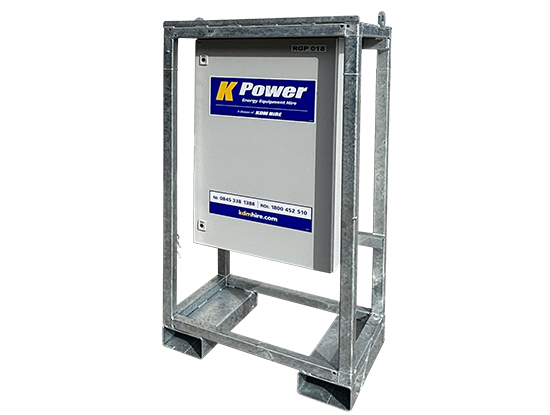

AMF & Manual Changeover Panels 250 to 1000A
Product Code: 70580AMF Automatic Mains Failure and manual change-over panels are available in a range of sizes to allow a fully automatic or manual connection to a secondary electrical supply, namely a generator or mains supply. These units provide a quick change to the secondary supply in the event of failure or planned shutdown of the primary.
- AMF & Manual versions
- IP rating IP54
- Galvanised steel frame
- Secure lockable doors
- Forklift pockets
Call our hire desk
For hire prices and availability
